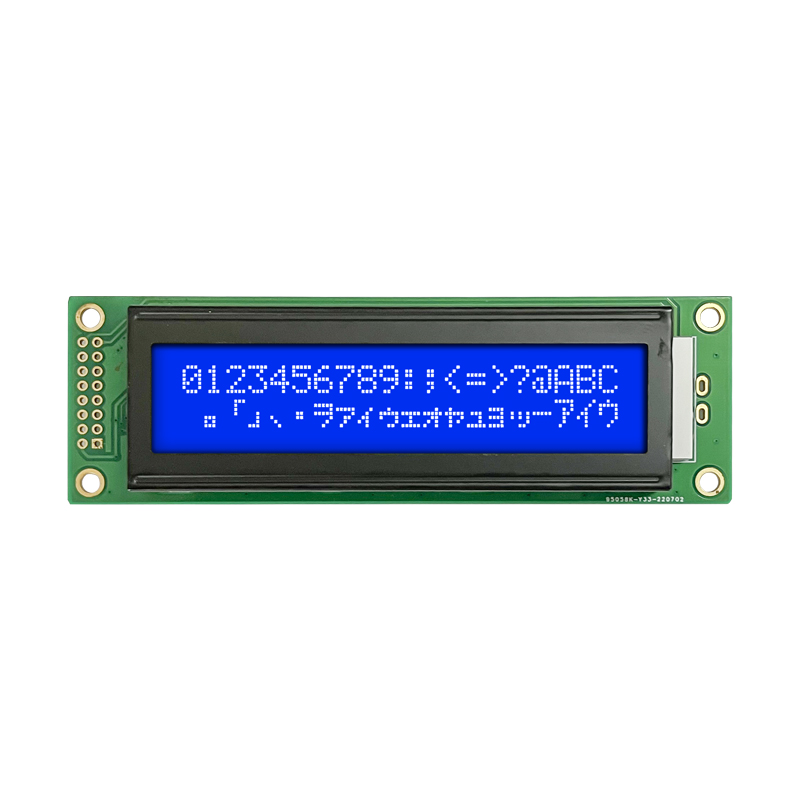

Character 20x2 LCD Module
Character 20x2 LCD Module
Character 20x2 LCD Module

Character 20x2 LCD Module

  • Manufacturer: SINDA
  • Product Name: 20x2 Character LCD Module Series | 20x2 Character Display
  • Backlight: White/Yellow-Green/Green

This LCD display offers a wide operating temperature range from -20 to 70 degrees Celsius. The best view for this monitor is 6:00/12:00. The monitor operates on a 3.3V/5V supply voltage and is RoHS compliant. Sinda Display is professional manufacturer of Monochrome LCD display for Industry application, include digital panel meter, UPS, inverter, multi-function meter, POS machines, Fuel Dispenser, Gas Dispenser, Flow Meter, KWH Meter, Energy Meter, Water Meter, Gas Meter, Smart Meter, Pump controller etc. For any other custom requests, feel free to contact us.

Inquire now back

ATTRIBUTES


Manufacturer

SINDA

Part Number

SDCB2002-01

Display Format

20x2 Character

Interface

6800 4-bit /  8-bit Parallel

IC or Equivalent

ST7066U  AIP31066  HD44780  SPLC780D

Connection

Pin Header

Outline Dimension

116.00(W)x37.00(H)x13.00(T)mm

Viewing Area

85.00x18.60mm

Active Area

76.78x11.40mm

Character Size

3.25x5.39mm

IC Package

COB

Display Type

FSTN /STN. Gray/Yellow-Green/Blue

Viewing Direction

6:00/12:00

Power Supply(Typ)

3.3V/ 5.0V

Operating Temperature

-20℃~70℃

Storage Temperature

-30℃~80℃



Display Format Model No. Outline Dimension Viewing Area Active Area IC Interface Datasheet Download
20 x 2 SDCB2002-01 116.00(W)x37.00(H)x13.00(T)mm 85.00x18.60mm 76.78x11.40mm ST7066U AIP31066 HD44780 SPLC780D 6800 4-bit / 8-bit Parallel
20 x 2 SDCB2002-02 180.00(W)x40.00(H)x13.50(T)mm 149.00x23.00mm 143.85x20.80mm ST7066U AIP31066 HD44780 SPLC780D 6800 4-bit / 8-bit Parallel
20 x 2 SDCB2002-03 116.00(W)x37.00(H)x13.00(T)mm 85.00x18.60mm 75.40x11.50mm ST7066U AIP31066 HD44780 SPLC780D 6800 4-bit / 8-bit Parallel
20 x 2 SDCB2002-04 146.00(W)x43.00(H)x13.20(T)mm 123.00x23.00mm 118.84x18.97mm ST7066U AIP31066 HD44780 SPLC780D 6800 4-bit / 8-bit Parallel
