6.9 Inch HDMI TFT LCD Display (280x1424)
- Manufacturer: SINDA
- Product Name: 6.9 Inch TFT LCD Module Display, 280x1424 Dots
- Display Format: 280x1424 Dots
- Interface: HDMI

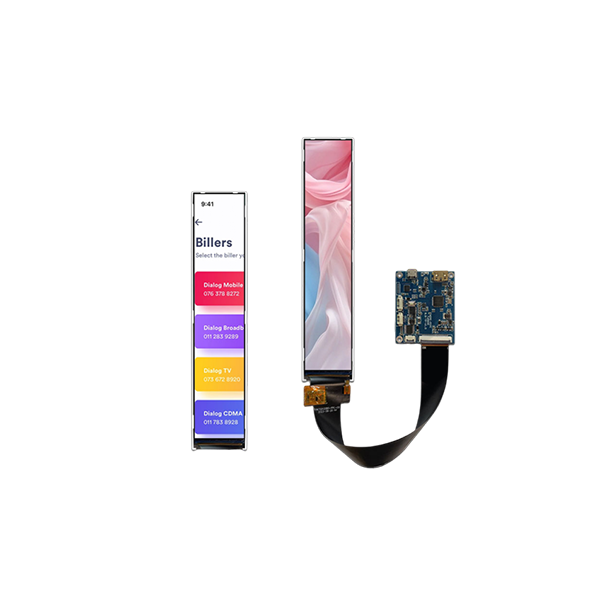

Sinda Display's new 6.9-inch long-strip LCD screen greatly simplifies the development process with the plug-and-play feature of the HDMI driver board, bringing developers an efficient and convenient user experience. The product adopts normally black TFT active matrix technology, 280×3RGB (H)×1424 (V) resolution with RGB strip pixel arrangement, so that the details of the picture are clearly visible; 0.1432mm pixel pitch and 33.6 (H)×170.88 (V) mm effective display area create a unique long-strip visual effect. The HDMI interface has stable transmission, 5V low-voltage drive is energy-saving and reliable, full-view viewing and 500cd/㎡ brightness, suitable for use in a variety of environments. The product has a mechanical size of 38.2 (W)×181.47 (H)×3.45 (T) mm, and can still operate stably in extreme environments of -30℃ to 80℃, and supports touch screen selection and customization requirements to meet display applications in different scenarios.
ITEM | Sandard value | Unit |
size | 6.9 | Inch |
LCD Type | Normally black | -- |
Drive element | TFT active matrix | -- |
Number of pixels | 280*3RGB(H)X1424(V) | Dots |
Pixel arrangement | RGB stripe | -- |
Pixel Pitch (W*H) | 0.1432(H) X 0.1432(V) | mm |
Active area | 33.6(H) x 170.88(V) | mm |
Mechanical OutlineSize(W*H*T) | 38.2(W) ×181.47(H) ×3.45(T) | mm |
Viewing direction | ALL O’CLOCK | - |
LCM interface | HDMI | - |
voltage | 5 | V |
operating temperature | -30+80 | ℃ |
storage temperature | -30+80 | ℃ |
Lumens degrees | 500 | cd/㎡ |
