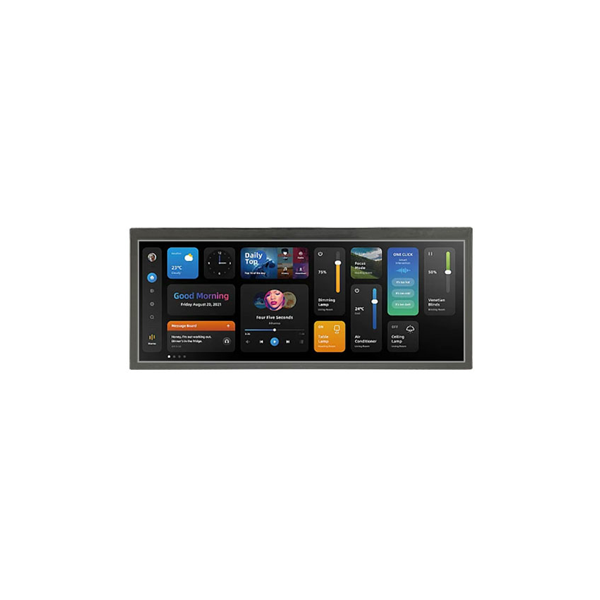

10.25 Inch Bar Type 40 Pin TFT Display (1920x720)
- Manufacturer: SINDA
- Product Name: 10.25 Inch TFT LCD Module Display, 1920×720 Dots
- Display Format: 1920×720 Dots
- Interface: LVDS BIT
Sinda Display independently developed a 10.25-inch long strip full-color TFT LCD screen with a resolution of 1920×720, IPS full viewing angle, and 1000cd/m² high brightness. Wide temperature range of -30 to 85℃, suitable for car dashboards, navigation and 3D printers. Display area 243.648*91.368mm, LVDS interface 40PIN, 36 LED backlights. Provide full technical support, first-class quality control and professional after-sales, stable and reliable performance.
ITEM | Sandard value | Unit |
size | 10.25 | Inch |
LCD Type | Normally black | -- |
Drive element | TFT active matrix | -- |
Number of pixels | 1920*720 | Dots |
Pixel arrangement | RGB stripe | -- |
Pixel Pitch (W*H) | 0.13269 | mm |
Active area | 243.648*91.368 | mm |
Mechanical OutlineSize(W*H*T) | 258.8*111.1*7.55 | mm |
Viewing direction | ALL O’CLOCK | - |
LCM interface | LVDS BIT Interface | - |
Lcm pin n count | 40 | |
Backlight leds | 36 | pcs |
Backlight current | 300 | mA |
Backligh voltage | 27.9-29.7 | V |
operating temperature | -30+85 | ℃ |
storage temperature | -40+90 | ℃ |
Lumens degrees | 1000 | cd/㎡ |
