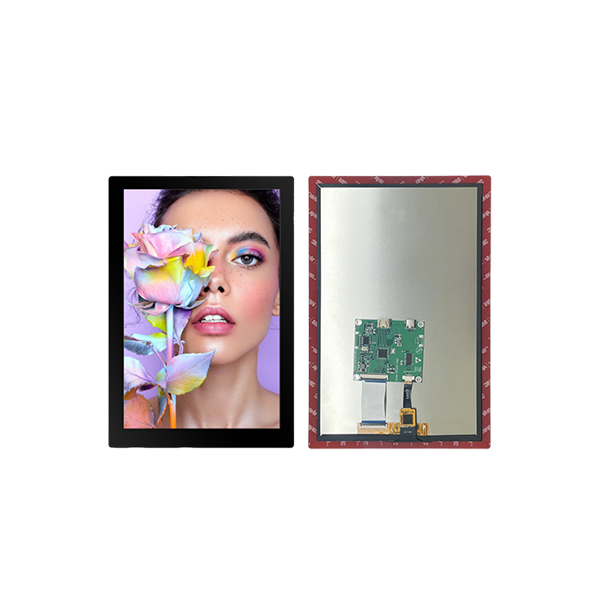

10.1 Inch TFT LCD Display (800x1280)
- Manufacturer: SINDA
- Product Name: 10.1inch TFT LCD Module Display, 800x1280 Dots
- Display Format: 800x1280 Dots
- Interface: HDMI
Sinda Display has launched a 10.1-inch HDMI interface touch integrated display, which perfectly combines high-definition display and sensitive touch. It adopts normally black TFT active matrix technology, 800×RGB (H)×1280 (V) resolution with RGB strip pixel arrangement, presenting delicate and clear pictures. Its HDMI interface is plug-and-play, without the need for complex software development, greatly reducing the development threshold and cost. The G+G structure touch screen combined with OCA full lamination process has a smooth touch and fast response. The product has a mechanical size of 159×244.6×4.85mm, supports full-viewing angle viewing, 5V low-voltage drive, stable operation in a working environment of -20℃ to 70℃ and a storage environment of -30℃ to 80℃, and a brightness of 300-800Nits, which is suitable for use in multiple scenarios. It is an ideal display touch solution with convenient development and excellent performance.
ITEM | Sandard value | Unit |
size | 10.1 | Inch |
LCD Type | Normally Black | -- |
Drive element | TFT active matrix | -- |
Number of pixels | 800*3RGB(H)X1280(V) | Dots |
Pixel arrangement | RGB stripe | -- |
Pixel Pitch (W*H) | 0.1692*0.1692 | mm |
Active area | 135.36(H) * 216.576(V) | mm |
Mechanical OutlineSize(W*H*T) | 159*244.6*4.85 | mm |
Viewing direction | ALL O’CLOCK | - |
LCM interface | HDMI | - |
Cover material | Asahi Glass | |
Touch screen structure | G+G | |
Laminating process | OCA | |
interface | HDMI | - |
voltage | 5 | V |
operating temperature | -20+70 | ℃ |
storage temperature | -30+80 | ℃ |
Lumens degrees | 300-800 | Nits |
